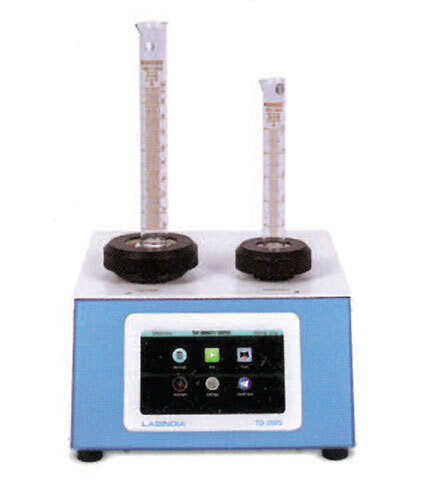

Tab Density Tester

Get a Price/Quote

MOQ : 1 Unit

Tab Density Tester Specification

Equipment Type
Tab Density Tester

Operating Voltage
220V

Resolution
0.01 ml

Accuracy
1%

Interface Type
RS-232

Display Type
Digital LCD

Mounting Type
Tabletop

Application
Powder bulk density and tapped density testing

Automation Grade
Semi-automatic

Response Time
2s

Test Range
1 - 60 ml

Number of Specimens
1

Gas Pressure
0.2 MPa

Specimen Size
20 - 1000 mg

Power Supply
AC 220V / 50Hz

Frequency
50Hz

Temperature
10 - 40C

Port Size
1/4 inch

Max Height
250 mm

Measuring Range
1 - 60 ml

Humidity
85% RH

Features
Preset number of taps, auto-stop, compact design

Usage
Pharmaceutical, chemical, and powder material testing

Capacity
60 ml cylinder

Machine Weight
34 kg

Test Speed
3000 cycles/min

Test Width
Dia. 100 mm cylinder

Test Stroke
14 mm

Control Mode
Microprocessor based

Safety
Overload protection, Emergency stop

Compliance
USP, EP, ASTM

Timer Range
1 - 9999 cycles

Power Consumption
60W

Included Accessories
Glass cylinder, power cable, user manual

Dimension (LxWxH)
360 x 260 x 400 mm

Cylinder Material
Borosilicate glass

Standard Conformity
Meets international laboratory standards

Noise Level
< 60 dB

Tab Density Tester Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Tab Density Tester

Experience rare precision in powder density analysis with our advanced Tab Density Tester. Designed for first-class reliability, this equipment features a robust borosilicate glass cylinder and delivers top-ranking performance with a timer range of 1-9999 cycles and an impressive 3000 cycles/min test speed. Equipped with microprocessor-based control, emergency stop, and overload protection, its digital LCD ensures exceptional accuracy with 1% precision. Ideal for pharmaceutical, chemical, and powder material testing, this compact, semi-automatic device is perfect for those who procure leading laboratory solutions.

Application Excellence & Advanced Features

The Tab Density Tester utilizes a controlled tapping mechanism to accurately determine the bulk and tapped density of powders. Its enhanced features include preset tap numbers, automatic stop, and digital LCD for immediate result readings. Commercially, it supports rigorous standards in the pharmaceutical and chemical industries, offering rapid, dependable results. With its semi-automatic, tabletop design, this tester enables precise method application and minimizes operator input, making it ideal for high-throughput laboratories managing diverse testing needs.

Reliable Supply, Packaging, and Shipping Policy

We maintain a soaring supply capacity for the Tab Density Tester to meet export market demands across India and beyond. Every unit is carefully packaged with glass cylinder, power cable, and detailed manual to ensure safe drop-off delivery. Our express shipping options get your products delivered rapidly for time-sensitive projects. Sample policy includes the provision of demo units upon request, subject to terms, ensuring that clients experience first-class service during their procurement process.

FAQ's of Tab Density Tester:

Q: How does the Tab Density Tester operate for powder bulk density measurements?

A: The Tab Density Tester works by placing powder samples into the borosilicate glass cylinder and applying a preset number of mechanical taps. The instrument records the settled and bulk volume, displayed digitally, allowing users to calculate density with high accuracy.

Q: What safety features are integrated into the Tab Density Tester?

A: This instrument includes overload protection and an emergency stop function to prevent equipment damage or sample mishandling, providing a secure, reliable testing environment for laboratory personnel.

Q: When should you use a Tab Density Tester in laboratory settings?

A: This tester is essential when precise measurement of powder bulk or tapped density is required-especially in pharmaceutical quality control, material research, and production environments where regulatory compliance is mandatory.

Q: Where can the Tab Density Tester be installed?

A: Its compact, table-top mounting allows installation in quality control labs, research centers, and manufacturing sites, particularly those in the pharmaceutical and chemical industries requiring advanced powder testing capabilities.

Q: What benefits does the microprocessor-based control offer?

A: The microprocessor-based system enables precise automation of test cycles, enhances operational consistency, and improves accuracy and repeatability, ensuring reliable and reproducible results with simplified user operation.
