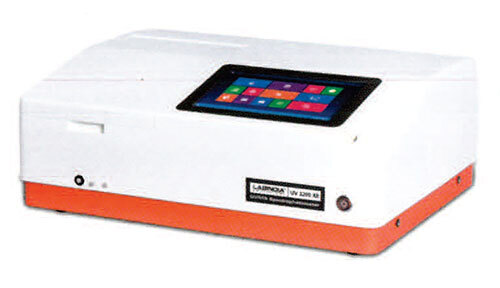

UV VIS Spectrometer

Get a Price/Quote

UV VIS Spectrometer Specification

Control Type
Microprocessor Based

Shape
Rectangular

Accuracy
0.5 nm (wavelength accuracy)

Power Supply
AC Mains

Features
Auto calibration, touch keypad, high precision measurements, wide wavelength range, USB data output

Glass Type
Quartz Cuvette Compatible

Display Type
Large LCD Touchscreen Display

Type
UV VIS Spectrometer

Dimension (L*W*H)
Approx. 480 mm x 380 mm x 220 mm

Equipment Type
Analytical Instrument

Equipment Materials
ABS plastic body with metal structural components

Power
110-240 V, 50/60 Hz, 80W

Voltage
110-240 V

Material
Plastic and metal

Application
Quantitative and qualitative analysis of samples in research, pharmaceutical, chemical, and educational laboratories

Stray Light
<0.05%T at 220nm, 340nm

Spectral Bandwidth
2 nm

Weight
Approx. 10 kg

Photometric Range
-0.3 to 3.0 Abs

Baseline Flatness
0.001 Abs (200-1100 nm)

Photometric Accuracy
0.002 A at 1.0 Abs

Cuvette Holder
4-position automatic changer

Detector
Silicon Photodiode

Light Source
Tungsten and Deuterium Lamp

Operating Temperature
+10C to +35C

Software
PC based software for data analysis and storage

Data Output
USB, RS232 port

Wavelength Range
190-1100 nm

About UV VIS Spectrometer

Take advantage of matchless precision and sterling engineering with this Elite UV VIS Spectrometer. Designed for discerning researchers, this analytical instrument features a brilliant wavelength range (190-1100 nm) and a 2 nm spectral bandwidth for high-resolution analysis. The microprocessor-based control, large LCD touchscreen display, and auto calibration deliver seamless usability and superior data integrity. With a photometric accuracy of 0.002 A and baseline flatness of 0.001 Abs, your results are consistently reliable. Grab yours to elevate your laboratory performance and experience excellence in every measurement.

Unmatched Advantages and Wide Application in Research Labs

The UV VIS Spectrometer offers outstanding advantages, including high photometric accuracy and an automatic 4-position cuvette changer, making it ideal for research and industrial plant applications. Its brilliant accuracy and reliability suit demanding quantitative and qualitative analyses across pharmaceuticals, chemicals, and educational laboratories. This spectrometer enhances productivity, ensuring efficient workflows and robust data for advanced laboratory needs.

FOB Port, Domestic Market, and Payment Terms for Easy Acquisition

This UV VIS Spectrometer is available via reliable transport services from top Indian FOB ports. Serving the main domestic market across India, we ensure quick shipment and support. Outlay is competitive, with the list price reflecting superb value for cutting-edge analytical performance. Flexible payment terms, including advance and online transaction options, further simplify procurement. Reach out to our service team for seamless ordering.

FAQ's of UV VIS Spectrometer:

Q: How does the UV VIS Spectrometer ensure high measurement precision?

A: The spectrometer achieves matchless precision through its 2 nm spectral bandwidth, photometric accuracy of 0.002 A, and automatic calibration, guaranteeing reliable data for research and industrial applications.

Q: What sample types can be analyzed with this spectrometer?

A: It is well-suited for quantitative and qualitative analysis of diverse samples in research, pharmaceutical, chemical, and educational laboratories. It is compatible with quartz cuvettes for a wide range of liquid samples.

Q: Where is the main domestic market for this product?

A: The primary domestic market for this UV VIS Spectrometer is India, with efficient transport services from major Indian FOB ports for timely delivery.

Q: What application areas benefit most from using this spectrometer?

A: This spectrometer is particularly beneficial for analytical work in pharmaceuticals, chemical testing, academic research, and quality control within industrial plants.

Q: How is data managed and stored with this instrument?

A: Data output is streamlined through USB and RS232 ports, with PC-based software supporting comprehensive data analysis and secure storage.

Q: What are the payment and delivery options?

A: Flexible payment terms are available, including advance and online payments. Quick transport services ensure prompt delivery across India for all orders.
